Winkomm 4 Mini Winkomm 4 Mini

4 Channel HDMI Switcher with PTZ Camera Control

The Winkomm 4 Mini is a revolutionary advancement, equipped with a wide range of sophisticated features designed to elevate your multimedia experience. It stands out with its multi-layer video processing capabilities, YUY2 Lossless UVC streaming, VENC hard-encoding record, and audio processing at a professional sound card-level, setting new benchmarks for audiovisual excellence.
Moreover, the Winkomm 4 Mini excels in enabling professional live broadcasting production by seamlessly integrating four cameras while maintaining a compact and highly efficient audio and video live streaming system. Offering broadcast-level live production, it simplifies the control of up to four cameras through an intuitive interface featuring just 29 buttons, three knobs, and a T-Bar. This elegantly functional panel empowers users to effortlessly engage in single-person live broadcasting with remarkable ease and user-friendliness. In summary, the Winkomm 4 Mini establishes a fresh standard in live broadcasting technology by merging state-of-the-art features with user-friendly controls, delivering an unparalleled experience for multimedia content creation.

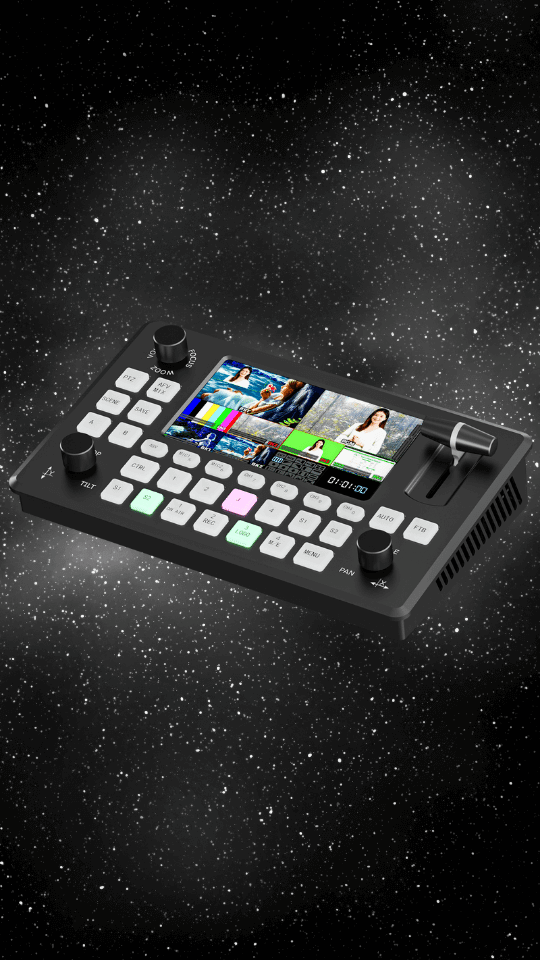

winkomm 4 mini vertical

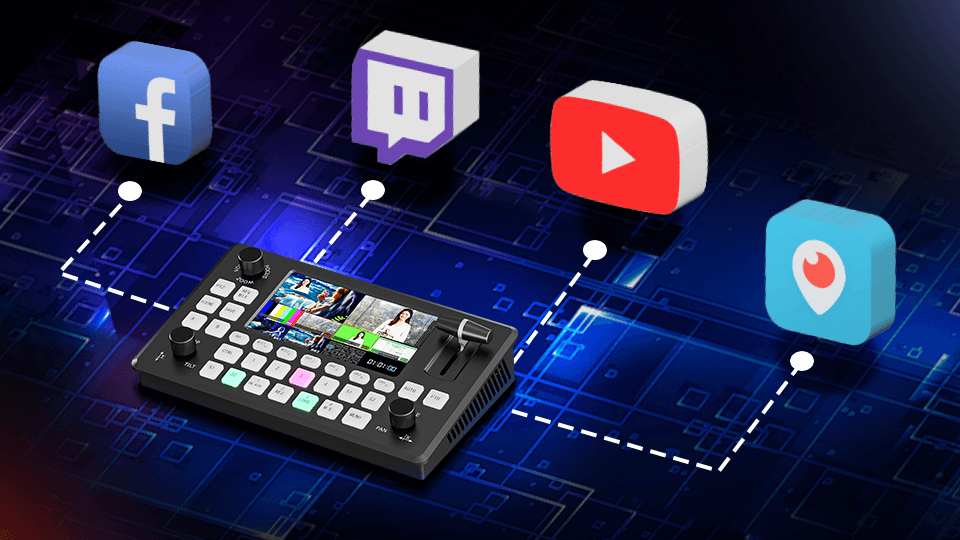

Built-in Encoding and Multistream

Winkomm 4 Mini Pro features with built-in encoding enables live streaming directly from the switcher, simplifying the broadcasting process and eliminating the need for external encoding devices.

winkomm 4 mini pro stream

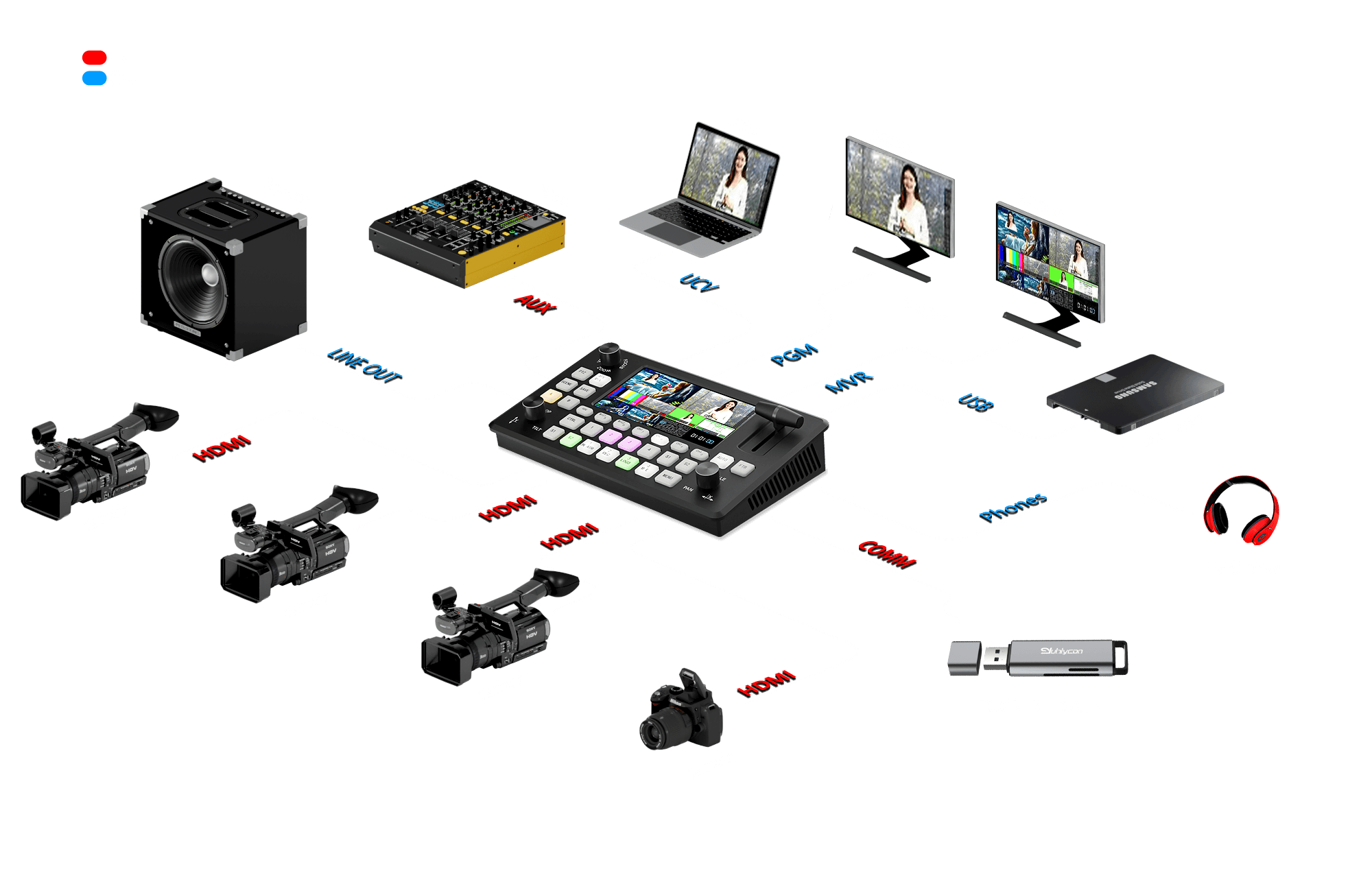

winkomm 4 mini connection diagram (1)

Specification

  • Video Input 4xHDMI, 1xUSB for image
  • Video Output 2xHDMI
  • Audio Input 2x XLR, 2x 3.5mm Line/Mic in
  • Audio Output 2x 3.5mm Line/Phone Out
  • HDMI Input Resolution 1080p25/29.97/30/50/59.94/60 1080i50/59.94/60, 720p50/60
  • PGM Out Resolution 1080p60
  • Multiview Out Resolution 1080p60
  • Video Sampling YUV 4:4:4 (HDMI)
  • Color Space YUY2 (USB)
  • USB Format FAT32(≤32 GB) | NTFS(64GB~2T)
  • Background Graphic Format JPG
  • Logo Image Format PNG
  • Audio Delay 0-300ms
  • Audio Format HDMI: Linear PCM, 24 bits, 2 ch
    USB: Linear PCM, 16 bits, 2 ch
  • Audio Sampling 48KHz
  • Control Protocol VISCA over IP
  • UVC & UAC UVC 1.0 & UAC 1.0
  • Stream Output USB-A 3.0
  • Recording USB-A 2.0
  • Recording Resolution 1080p60
  • Recording Format MP4
  • Recording Bitrate 4-5Mb/s, 8-9Mb/s, 15Mb/s
  • Power 12V 2A
  • Product Size 23x14.4x22.4cm
  • Package Size 28x18x13cm
  • Product Weight 1.14kgs/1.9kgs
