WK-510 Series
1080p PTZ Camera with 12X-30X Zoom
The Winkomm WK-510 series PTZ Video Camera is equipped with a powerful 1/2.8″ CMOS sensor and versatile varifocal lens with 12-30x zoom capabilities, capable of capturing video content at resolutions up to 1080p at 60fps. WK-510 series PTZ camera supports a wide range of connectivity options, including POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in, making it easy to integrate into any professional video production setup.
To ensure smooth and noiseless PTZ operation, the camera employs a step drive motor mechanism and motor drive controller. Additionally, it supports a variety of video and audio compression formats, including H.264/H.265 for video and AAC, MP3, and G.711A for audio. With these advanced features, the Winkomm WK-510 series PTZ Video Camera is the perfect choice for professional videographers and broadcasters looking to capture high-quality video content.
HDMI or SDI Output
WK-510 PTZ Cameras support outputs include HDMI, 3G-SDI, Wired LAN (NDI|HX). The 3G-SDI will wok up to 100 meters in distance.
1080p60 Resolution
WK-510 PTZ Cameras delivers brilliantly sharp video and outstanding color at resolutions up to 1080p 60 via it’s HDMI or SDI output.
Auto Focus
WK-510 series PTZ Cameras employs an autofocus algorithm that ensures the len’s focusing performance is lens fast, accurate, and stable.
Low Noise & High SNR
Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
Power Over Ethernet
With POE, these’s no need for a seperate power supply or outlet for the device, perfect for when you don’t have a nearby power source.
RS232 Cascade
WK-510 PTZ camera allows multiple cameras to be controlled though a single RS232 connection, reducing the numbers of cables required for installation.
Light Correction
Winkomm WK-510 live streaming camera featuers with Wide Dynamic Range (WDR) and optimizes light balance, and fine-tunes color and saturation for natural results.
Adaptive Pan and Tilt
WK-510 PTZ Camera is equipped with the PT drive mechanism that can change the pan/tilt speed in incremental steps. This allows the operator to set the speeds to desired preference to allow for smooth PT movement. The WK-510 exhibits a variable pan speed of 0.1 to 300°/second and variable tilt speed of 0.1 to 170°/second.

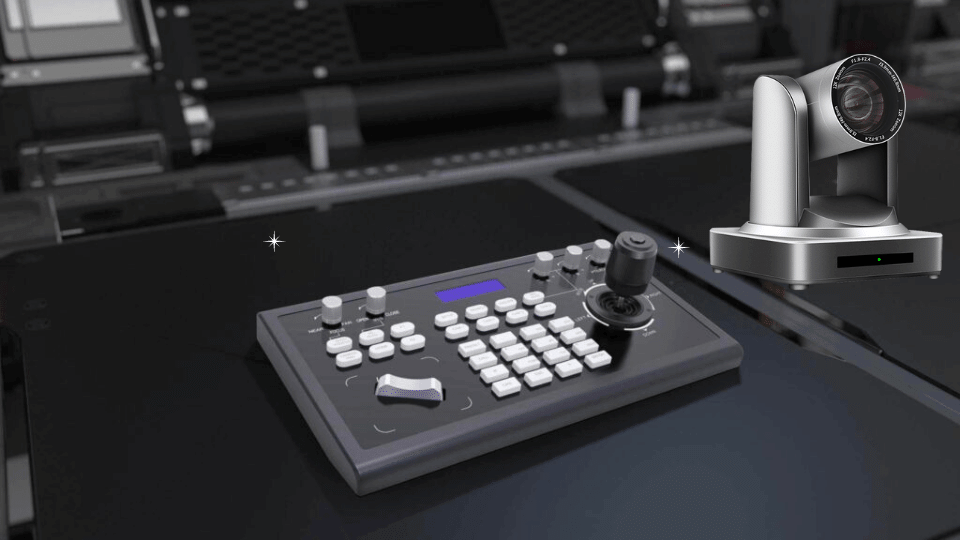

Multiple Control Protocols
VISCA, IP VISCA, PELCO-D, PELCO-P, ONVIF protocols are supported and can also be automatically recognize right out of box.
IR Remote Control
2.4G wireless remote control is not affected by angle, distance and infrared interference. Remote control signal pass-through is supported to facilitate the use of back-end device.
Wall Mount Included
The included Winkomm Camera Wall Mount will support the Winkomm camera using a 1/4″-20 screw on the bottom. Attaching the camera and mount directly to the wall will provide you with a sturdy long-term mounting solution.
Choosing From 6 Amazing Models
 |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
|
Model |
WK-510-12X |
WK-510-20X |
WK-510-30X |
WK-510NDI-12X |
WK-510NDI-20X |
WK-510NDI-30X |
|
Video I/O |
HDMI, SDI |
HDMI, SDI |
HDMI, SDI |
HDMI, SDI, NDI|HX |
HDMI, SDI, NDI|HX |
HDMI, SDI, NDI|HX |
|
Audio I/O |
1x3.5mm line in |
1x3.5mm line in |
1x3.5mm line in |
1x3.5mm line in |
1x3.5mm line in |
1x3.5mm line in |
|
Sensor |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
|
Effective Pixels |
2.07MP |
2.07MP |
2.07MP |
2.07MP |
2.07MP |
2.07MP |
|
Video Format |
1080P60 max |
1080P60 max |
1080P60 max |
1080P60 max |
1080P60 max |
1080P60 max |
|
Digital Zoom |
10X |
10X |
10X |
10X |
10X |
10X |
|
Optical Zoom |
12X |
20X |
30X |
12X |
20X |
30X |
|
Focal Length |
f=3.9~46.1mm |
f=5.5~110mm |
f=4.3~129mm |
f=3.9~46.1mm |
f=5.5~110mm |
f=4.3~129mm |
|
Aperture |
F1.8-F2.4 |
F1.6-F3.5 |
F1.6-F4.7 |
F1.8-F2.4 |
F1.6-F3.5 |
F1.6-F4.7 |
|
View Angle |
6.3°~ 72.5° |
3.3°~ 54.7° |
2.34°~ 65.1° |
6.3°~ 72.5° |
3.3°~ 54.7° |
2.34°~ 65.1° |
|
Minimum Illuimnation |
0.5Lux |
0.5Lux |
0.5Lux |
0.5Lux |
0.5Lux |
0.5Lux |
|
DNR |
2D & 3D |
2D & 3D |
2D & 3D |
2D & 3D |
2D & 3D |
2D & 3D |
|
SNR |
>55dB |
>55dB |
>55dB |
>55dB |
>55dB |
>55dB |
|
Auto Focus |
|
|
|
|
|
|
|
Auto Exposure |
|
|
|
|
|
|
|
White Balance |
|
|
|
|
|
|
|
BLC |
|
|
|
|
|
|
|
WDR |
|
|
|
|
|
|
|
Video Compression |
H.264, H.265 |
H.264, H.265 |
H.264, H.265 |
H.264, H.265 |
H.264, H.265 |
H.264, H.265 |
|
Audio Compression |
AAC, MP3, PMC |
AAC, MP3, PMC |
AAC, MP3, PMC |
AAC, MP3, PMC |
AAC, MP3, PMC |
AAC, MP3, PMC |
|
Remote |
RS232, RS485 |
RS232, RS485 |
RS232, RS485 |
RS232, RS485 |
RS232, RS485 |
RS232, RS485 |
|
Control Protocol |
VISCA, Pelco-D, Pelco-P |
VISCA, Pelco-D, Pelco-P |
VISCA, Pelco-D, Pelco-P |
VISCA, Pelco-D, Pelco-P |
VISCA, Pelco-D, Pelco-P |
VISCA, Pelco-D, Pelco-P |
|
Network Protocol |
RTMP, RTSP, ONVIF |
RTMP, RTSP, ONVIF |
RTMP, RTSP, ONVIF |
RTMP, RTSP, ONVIF |
RTMP, RTSP, ONVIF |
RTMP, RTSP, ONVIF |
|
Pan |
±170° |
±170° |
±170° |
±170° |
±170° |
±170° |
|
Tilt |
-30°~90° |
-30°~90° |
-30°~90° |
-30°~90° |
-30°~90° |
-30°~90° |
|
Preset |
255 |
255 |
255 |
255 |
255 |
255 |
|
Product Size |
15x15x16.8cm |
15x15x16.8cm |
15x15x16.8cm |
15x15x16.8cm |
15x15x16.8cm |
15x15x16.8cm |
|
Product Weight |
1.4kg |
1.4kg |
1.4kg |
1.4kg |
1.4kg |
1.4kg |
|
Power |
12V 2A |
12V 2A |
12V 2A |
12V 2A |
12V 2A |
12V 2A |
